CATIS Perimeter Intrusion Detection System Genetec Gateway Solution Overview

The IHS3xx Perimeter Intrusion Detection System (PIDS) is a sensor-based system that employs advanced hybrid detection technologies to deliver a high level of perimeter surveillance. It is compatible with most fence environments and supports the detection and tracking of all types of intruders.

By utilizing the IHS3xx - Genetec Gateway (RSA Interface), users can monitor the IHS3xx system and configure alarm responses directly within the Genetec Security Center.

The IHS3xx Sensor is designed for fence-mounted installations, incorporating advanced hybrid detection capabilities to enable both fence line and open area surveillance within a single hardware platform. It employs passive infrared (PIR) technology to detect the body heat of approaching objects and dual-detection technology to analyze vibrations caused by movement on the fence via accelerometer data. This "All-in-One" sensor maintains individual functionalities while integrating enhanced fusion features.

The IHS3xx sensor provides tri-axis accelerometer data to detect vibrations within approximately 3 meters (up to 5 meters) of the fence. The IHS302 and IHS320 models additionally analyze thermal data within a 180° field and up to 5 meters to detect approaching objects.

Each Sensor and Data Gathering Unit (DGU) supports dual communication buses, allowing a single DGU to connect up to 500 sensors (250 sensors per port), covering a perimeter of up to 1,200 meters with 3-meter panel spacing.

Main Features :

• Directly Mounted on Perimeter Fence: Sensors and system are installed directly on the fence line.

• Independent Sensor Placement: Sensors are installed centrally on the fence at intervals of up to 5 meters.

• Continuous Connection: Independent sensors are connected in a continuous daisy-chain configuration using a single cable.

• Hybrid Detection: Sensors detect "approach" and "vibration" events on perimeter fences.

• Universal Fence Compatibility: Applicable to all fence types, including traditional mesh, welded wire mesh, and fence tops.
• System Configuration: The IHS3xx system includes the IHS3xx and IHS3xxRP sensor series, sensor management via DGU, and optional components such as line surge protectors (IHSLP), line splitters, and the digital input/output device (IHS300TB).

Features and benefits

Optimized Perimeter Security with IHS3xx - Genetec Gateway (RSA Interface)

By utilizing the IHS3xx - Genetec Gateway (RSA Interface), you can fully leverage the unique features of IHS3xx sensors without additional costs or complex configurations, ensuring optimal protection of perimeter facilities through seamless integration with the Genetec Security Center.

Features

• Hybrid Detection: Detects fence vibrations (acceleration), tilt, and intrusion through motion detection.

• Advanced Operations: Configures PIR and accelerometer data with "OR, AND, STEP (conditional)" methods for alarm decisions.

• Pinpoint Alerts: Provides alarm positions within Ø1.5m (up to 2.5m) and supports group alerts.

• Pattern Filtering: Stores false alarm patterns and utilizes filtering functionality.

• Automatic Sensitivity Adjustment: Automatically adjusts sensitivity for increased responsiveness after initial detection and reduces sensitivity to account for wind speed or environmental vibrations.

• Wind Speed Integration: Collects wind speed data and adjusts threshold sensitivity during strong winds.

• False Alarm Reduction: Features automatic sensitivity adjustment, pattern filtering, sensor differential comparison, and AND/OR motion-vibration operation.

• Real-Time Monitoring: Includes sensor and cable status monitoring (Alive Check) and tamper detection.

• Versatile Communication: Supports Ring/Star topology with ring communication for both system and DGU units.

Benefits

• Simplified Setup: Software-based system configuration and zone allocation ensure easy and cost-effective installation.

• Superior Detection Performance: Hybrid sensors for acceleration, motion, and tilt detection guarantee wide coverage and exceptional accuracy.

• Minimized False Alarms: Advanced algorithms effectively reduce false alarm rates to the lowest level.

• Economic Efficiency: Long product lifecycle and modular replacement components enhance cost-effectiveness.

• High Reliability: Single-cable design with line surge protection ensures robust stability.

• Scalability and Redundancy: Multi-topology networks enable flexible system expansion and uninterrupted communication.

• Seamless Integration: Reliable sensor-to-software integration with Genetec RSA Interface ensures stable operation.

• Proven Durability: Demonstrated reliability under harsh environmental conditions.

Solution Architecture

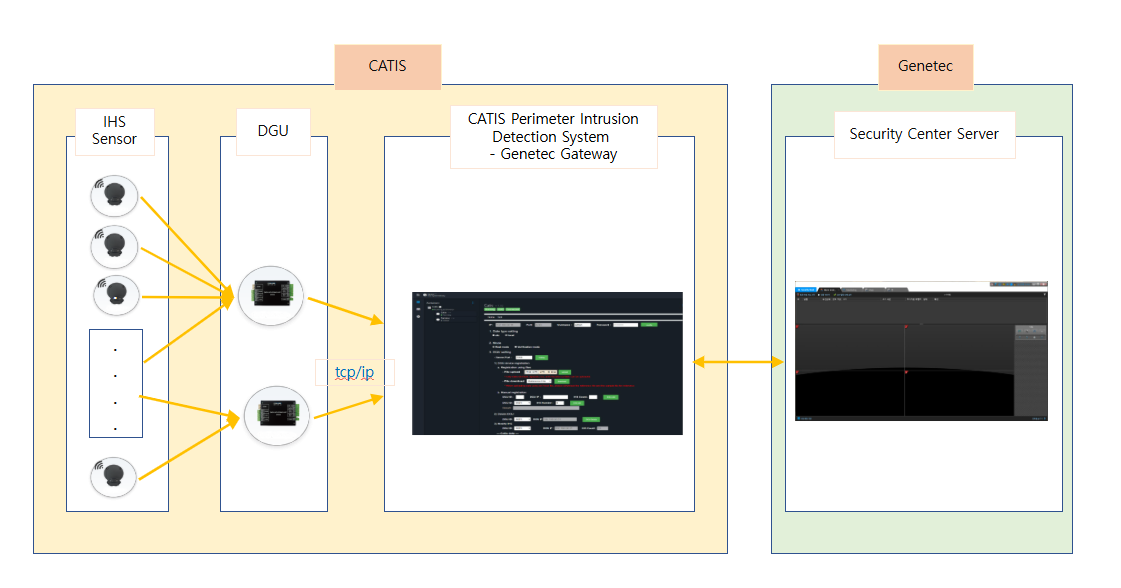

CATIS Perimeter Intrusion Detection System - Genetec Gateway operation : ​

• ISG communication authentication success.​
• Sends Heartbeat periodically to ISG.​
• Waiting for the DGU to be connected.​
• Manages DGU data when DGU connected.​
• Periodically requests and collects IHS status.​

DGU Operation :​

• Periodically collects IHS data.​
• Attempts to connect to CATIS Perimeter Intrusion Detection System - Genetec Gateway.

When a DGU is connected :

• After the status of the DGU (Model) and IHS (Device) communicated with CATIS Perimeter Intrusion Detection System - Genetec Gateway is changed to 'Connected,' the Heartbeat protocol is sent to the ISG.​

• Security Center registers the IHS (Device) data equipment.​

When an event occurs :​

• An event occurs at the IHS sensor.​

• The DGU sends the event to CATIS Perimeter Intrusion Detection System - Genetec Gateway via communication.​

• After CATIS Perimeter Intrusion Detection System - Genetec Gateway generates the data, it sends the Fence intrusion event to the ISG.​

• The Security Center displays the alarm screen associated with the IHS (Device).​
