Swaraj Secutech MODBUS Product Monitoring Solution Overview

Swaraj's Product Monitoring System provides a solution to operate and manage Swaraj's products - Barrier/Bollards installed in a surveillance area from a centralized system.

Key market application

Swaraj's Product Monitoring System is a module worked under Genetec Security Center that enables communication with Swaraj's TCP/IP devices connected to Swaraj's products. These TCP/IP devices are Modbus enabled and every device is linked within a network to operate Barriers/Bollards. Each device assigned with an IP address used to identify and for sending commands to the Barriers/Bollards. Many devices are connected over a network so it is not easy to manage and monitor them all physically. Swaraj's product Monitoring System will make it possible by providing a monitoring function. Monitoring from a centralized system can be possible which gives operators to monitor and perform the task right from their system. Security Center provides a context to perform operations on TCP/IP devices via Swaraj's Product Monitoring System.

Central Command Operation

Swaraj products are designed to protect and secure the area from intruders. Swaraj's Product Monitoring System ensuring the safety from a central system. Operators have the ability to send commands to operate products centrally from their systems.

Management System

Swaraj's Production Monitoring System plugin has specifically designed a management dashboard for Security Desk operators. An area can be divided into the number of zones and these zones are configurable as per needs. In every zone, devices are installed and same as zones devices also have an option for managing.

Features and benefits

• Single Screen

From the single page screen task can be performed and all the operations are possible from here. The operator doesn't need to do any other configurations.

• Flexible Operations

Operations like barrier UP/DOWN/EMERGENCY are easy to handle by just a click of a button. As Swaraj's TCP/IP device is enabled with Modbus protocol, it is easy to trigger commands to respective products. (Barriers/Bollards).

• Centralized System

​​​​​​​Zones with devices can be operated via a central system and keep track of all device for Swaraj's products.

• Device Configuration

​​​​​​​List of all devices with their IP addresses can be captured. From the workspace, the operator can assign the IP address to the device.

• Zone Management

​​​​​​​The zones can be easily managed and devices can be plot into these zones. The operator can easily add/update zone(s) any time as per needs.

• Supports Emergency Activation/Release

​​​​​​​In an emergency situations operator have command over the device to activate an emergency so that all the zones can be secure.

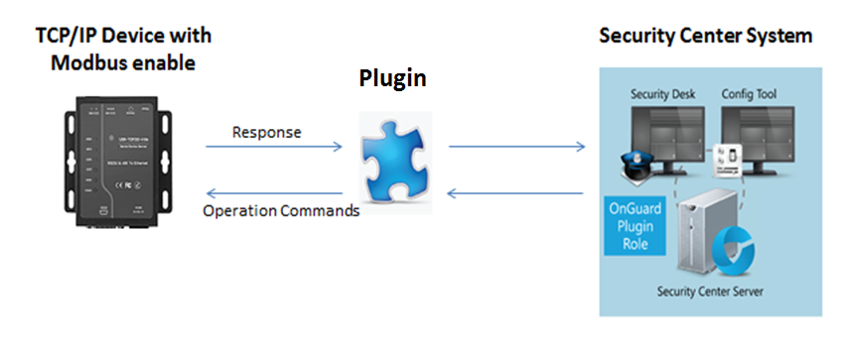

Solution architecture

Swaraj's Product Monitoring System plugin is specifically developed for performing operations using the Security Desk for Swaraj's Barriers/Bollards. Security Desk operators can operate a number of devices with a single application interface. With every Swaraj's Barriers/Bollards a TCP/IP device is connected which is build by Swaraj team. Swaraj's Product Monitoring System plugin will provide a platform over the Security Center to communicate with TCP/IP device to operate Swaraj's Bollards/Barriers as per needs.
